The hydrodynamic bearing system is specifically engineered for large rotating drum assemblies within the Titan Range for Gear Driven Mills and Scrubbers. These machines operate under high radial loads, with slow-to-moderate rotational speeds, and often in demanding mining environments. The bearing supports the drum journal ring (a fabricated steel ring) while eliminating traditional rolling-element or plain-metal bearing. Traditional rolling-element or plain-metal bearings bring forward issues such as high starting torque, metal-to-metal contact, and frequent replacement.

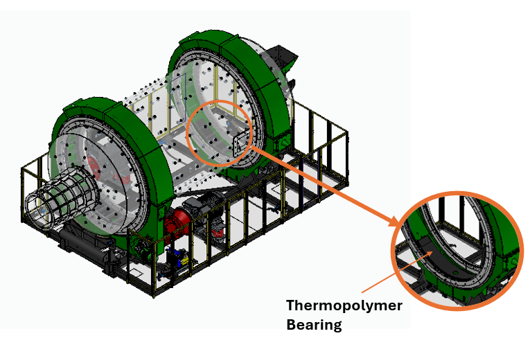

Figure 1 - Double Journal titan Mill with Thermopolymer Bearings

The core of the system is a single Advanced Thermopolymer Bearing (single bearing for single journal applications and dual bearings for double journal applications) that serves as the sole wearing component. The design integrates hydrostatic lift at start-up with continuous hydrodynamic lubrication during operation, ensuring full-film separation between the rotating journal and the stationary bearing surface.

Figure 2 - Basic Diagram of Hydrodynamic Bearing

Application Specific Benefits

Minimal Wear and Extended Service Life:

·   The generation of a full hydrodynamic oil film ensures that the Advanced Thermopolymer Bearing operates with little to no wear. In conventional metal or bronze bearings, start-stop cycles and abrasive ingress cause rapid surface degradation. Here, the polymer bearing is always protected by the oil film, dramatically extending mean time between replacements.

 Single Wear Item Design:

·   Only the Advanced Thermopolymer Bearing is a consumable component (other than the regular replacement of lubrication oil). There are no multiple bearing races, rollers, or complex cartridge assemblies to inspect or replace. This simplifies inventory management and reduces the risk of incorrect part installation during field maintenance.

Rapid Maintenance and Reduced Downtime:

·        The bearing can be swapped out quickly with the integrated drum jacking system. Maintenance crews can perform the change-out during scheduled short shutdown windows, returning the mill or scrubber to service faster than with traditional bearing systems. This is particularly advantageous in remote plant locations where crane time and labour are expensive.

Operational Reliability in Harsh Environments:

·   The Thermopolymer material offers inherent resistance to abrasion, moisture, and chemical attack common in scrubber and mill applications. The continuous oil film further flushes away any fine particulates, preventing scoring or embedding of contaminants into the bearing surface.

Safety and Environmental Considerations:

·  The system operates with standard industrial lubrication oils; no special greases or dry lubricant additives are required. The hydrostatic lift at start-up also reduces peak motor current draw, lowering electrical demand spikes and associated switchgear stress.

    Scalability:

·     The same methodology is readily scalable across different drum diameters and loads by adjusting port sizing, oil viscosity, Thermopolymer wall thickness and width, making it suitable for both small pilot equipment and large-diameter equipment.

Monitoring Compatibility:

·     The bearing housing can accommodate standard temperature sensors. Because the polymer wear is minimal and predictable, condition-based maintenance is straightforward using simple oil-pressure and temperature trending.

Cost Reduction Advantages

Maintenance Cost Savings:

·  Wear on the Advanced Thermopolymer Bearing is almost negligible, replacement intervals are significantly longer than those of conventional bearings. When replacement is eventually required, only a single, relatively low-cost polymer insert is needed. Combined with shorter maintenance durations, overall maintenance expenditure is substantially reduced.

Lower Operational Expenditure (OPEX):

·    Reduced friction from the hydrodynamic film lowers power consumption during steady-state operation. More importantly, the elimination of unplanned stoppages due to bearing failure translates into higher plant availability and throughput. In high-value mineral processing circuits, even a few hours of additional uptime per month can deliver significant revenue gains.

Capital and Inventory Efficiency:

·     The simplified design (single wear item with the standard lubrication ports) reduces initial procurement costs compared to multi-component roller or sleeve bearing packages. Spare-part stocking is minimal, freeing up capital and warehouse space.

Lifecycle Cost Advantage:

·   Over the life of the equipment, the combination of extended bearing life, rapid change-outs, and reduced energy use yields a materially lower total cost of ownership (TCO) than traditional bearing technologies.

Figure 3 - Levelling of Double Journal Polymer Bearings During Assembly

Conclusion

This hydrodynamic bearing solution provides a robust, low-maintenance, cost-effective alternative for mills and scrubbers, directly addressing the pain points of high load, frequent start-stop cycles, and abrasive operating conditions typical of these applications.
